Dulapuri în picioare

DULAP RACK 19" LIBER 47U/800X1000 CU USA DIN STICLA NEGRU (ASAMBLAT)

Cod producător: FA01-8047-12B
EAN: 5901969406450
Garanție: 36m
Tipul de dulap: Liber în picioare
Dimensiune: 19"
Înăl?imea TIC: 47 U
Tipul de ansamblu: Asamblate
Descrierea produsului

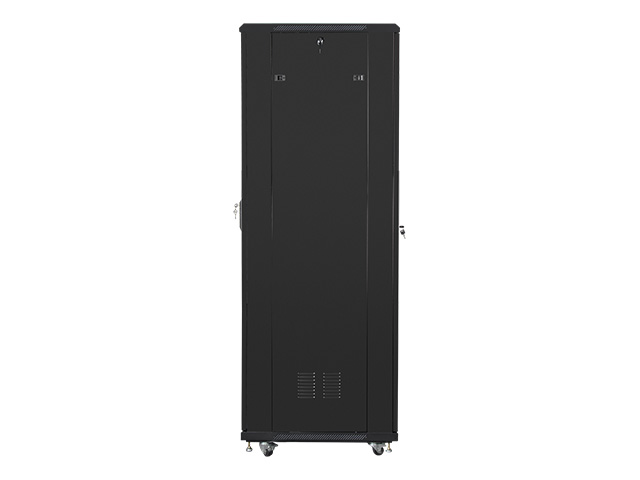

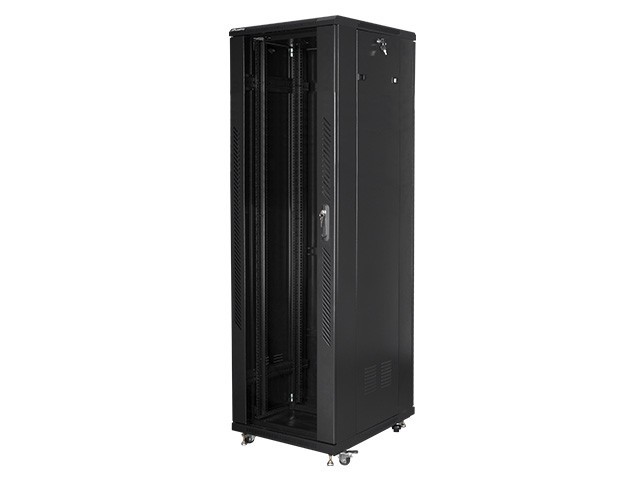

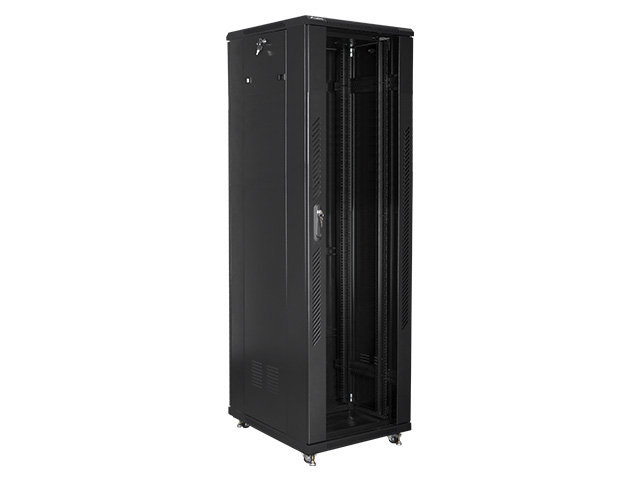

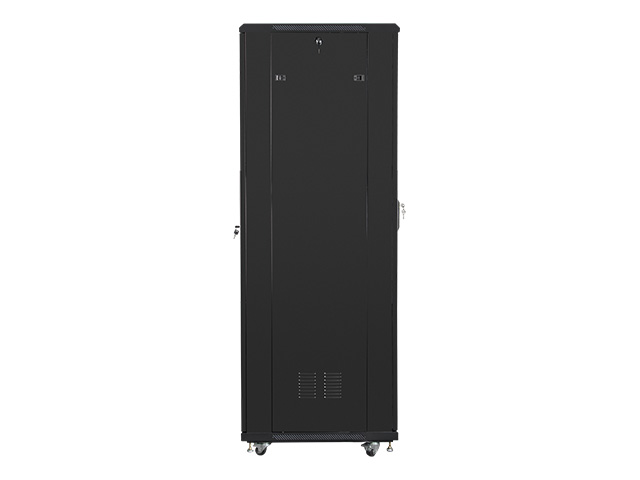

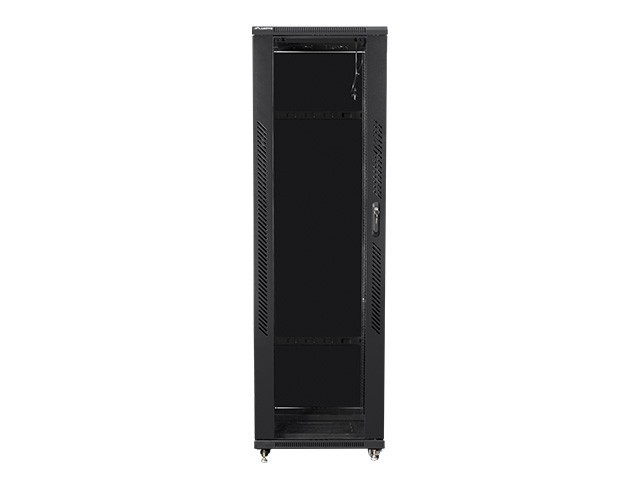

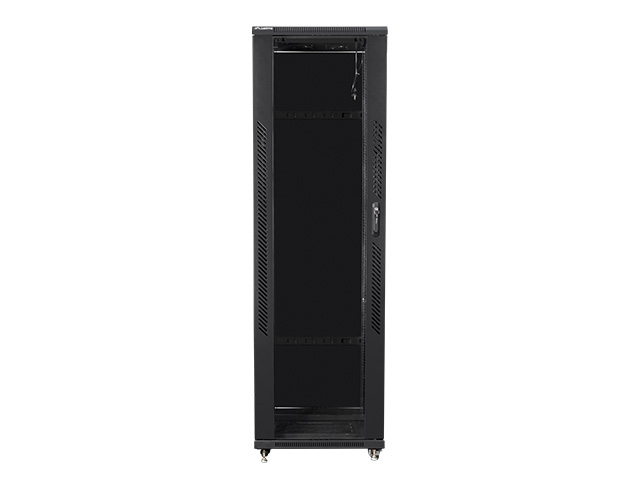

Assembled freestanding Lanberg cabinet FA01-8047-12B, is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity. It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipments. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Construction is made of high grade cold rolled steel which characterised by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock. You can put the wiring through entry cable on top and bottom panels (with blank entry panels). The fan tray include 4 fans 230V.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: FA01-8047-12B,
- Cabinet type: Freestanding,
- Body color: Black RAL9004,
- Height: 47U,
- Cabinet dimensions (W x D x H): 800x1000x2277 mm,
- Floor panel: 4 castors with brake + adjustable legs,
- Loading capacity: Do 800 KG,
- Degree of protection: IP20,
- Top with fan tray: 4 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Thickness: Mounting profile - 2,00mm, Others - 1,2mm - 1,5mm,
- Cable entry panel: Top, Bottom (adjustable),
- Included: locks for front and rear doors and two side panels,ventilation panel, feet, casters with brakes.

Tipul de dulap
Liber în picioare
Dimensiune
19"
Înăl?imea TIC
47 U
Tipul de ansamblu
Asamblate
Adâncimea de lucru
920 mm
Tipul u?ii din fa?ă
Tempera de sticlă
Tipul u?ii din spate
Metal
Tipul de u?ă
Cu o singură frunză
Unghiul maxim de deschidere a u?ii din fa?ă
215 °
Sarcina statică maximă
800 kg
Suma sloturilor pentru fani
4
Numărul de ?ine verticale
4
Termostat
Nu
Panou LCD
Nu
Culoare
Negru
Culoare RAL
RAL9004
Ratingul de rezisten?ă la intemperii
IP20
Grosimea u?ii din fa?ă
5 mm
Grosimea panoului superior ?i inferior
1.5 mm
Grosimea panoului lateral
1 mm
Grosimea ?inelor de montaj
2 mm
Grosimea cadrului
1.2 mm
Alte elemente grosimea foii
1.2 mm
Adâncime
1000 mm
Lă?ime
800 mm
Înăl?ime
2277 mm
Greutate
154 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PARTEA 1, DIN 41494/PARTEA 7, ETSI, IEC297-2:1982
Accesorii incluse
Blocaj spate, Panou de ventila?ie (4 ventilatoare), Picioare, Ro?i cu frână, Încuietoare frontală, Încuietori laterale

Descărcați fișiere

Fișa produsului PL
Fișa produsului EN
Declarație de conformitate EN
Declarație de conformitate PL
